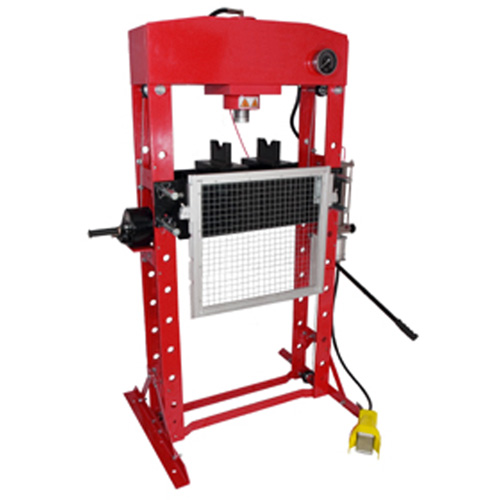

50-Ton Super-Duty Shop Press
AFF SUPER DUTY Shop Presses. The welded frame and heavier gauge steel make these
presses ideal for heavy duty truck applications, spring shops, industrial, or every day shops
that find themselves in need of a "step up" from a regular duty press. A movable press head
assembly and included V-blocks add versatility to these work horses. To complete the package,
these new presses come complete with foot operated air motor assist pin, press adapter kit
and mountable/removable retracting guard for added safety.
Features
- Welded frame for added strength
- Protective guard, combination 'V' block and pressing adapter set included
- Press head moves from side to side for added pressing flexibility
- Liquid filled gauge accurately shows operator pressing force being applied
- Air pressure: 110 - 120 PSI
- HD cable winch for raising and lowering press bed
- Includes multiple use pin and press adapter set
Specifications
- Capacity: 50 tons
- Ram Stroke: 7.75 in.
- Overall Dimensions: 54 in. W x 75 in. H
- Bed Depth: 10.125 in.
- Bed Width: 28.75 in.
- Throat Depth: 7.25 in.
- Throat Width: 16.75 in.
- Ship Weight: 660 lbs.
